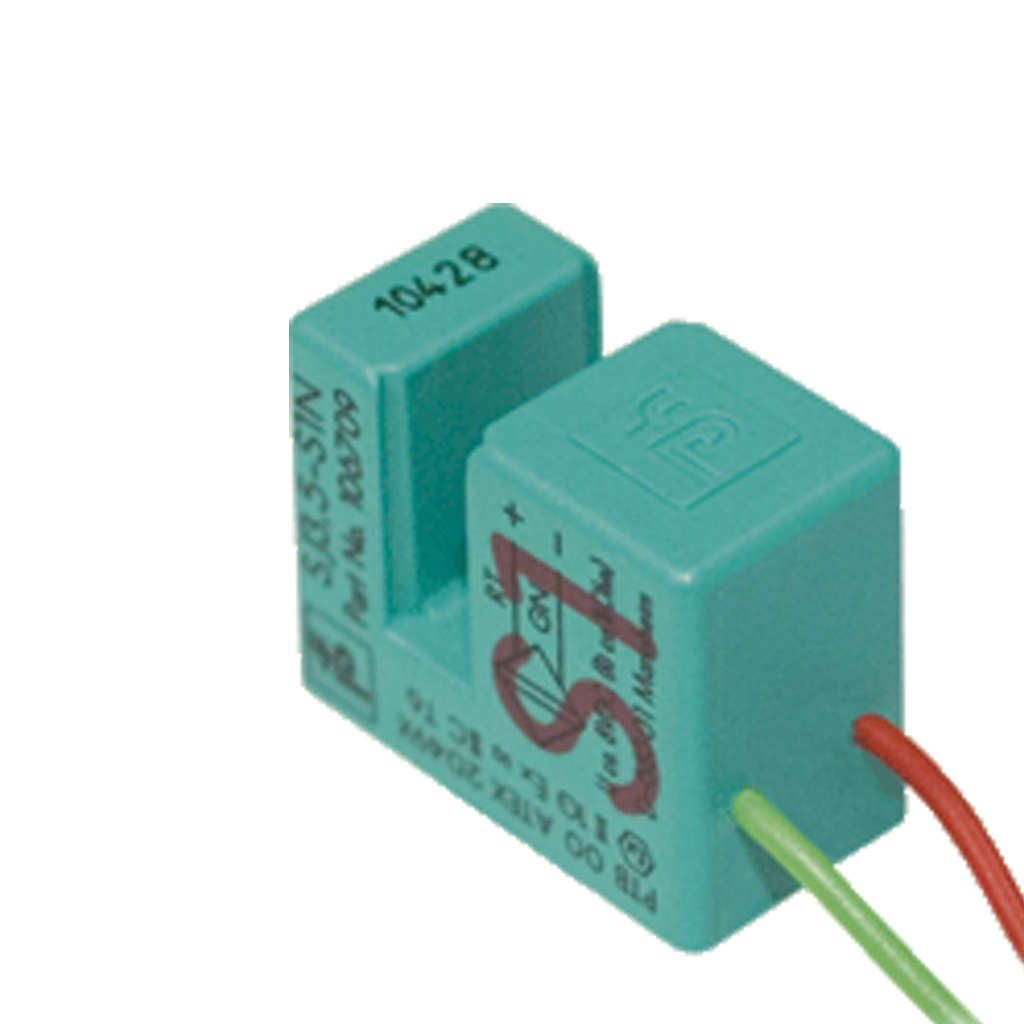

سنسور اسلات القایی SJ3,5-S1N

ویژگی های محصول SJ3,5-S1N

– عرض شکاف 2 میلی متر
– قابل استفاده تا SIL 3 acc. به IEC 61508

Switching element function	NAMUR, NO
Slot width	3.5 mm
Depth of immersion (lateral)	5 … 7 typ. 6 mm
Output polarity	Safety Function
Safety Integrity Level (SIL)	up to SIL3 acc. to IEC 61508 Danger! In safety-related applications the sensor must be operated with a qualified fail safe interface from Pepperl+Fuchs, such as KFD2-SH-EX1. Consider the “exida Functional Safety Assessment” document which is available on www.pepperl-fuchs.com as an integral part of this product’s documentation.
Nominal voltage	8 V
Switching frequency	0 … 2500 Hz
Hysteresis	with NAMUR switch amplifier: 0.09 mm (e. g. Pepperl+Fuchs KCD2-SR-Ex1.LB) with safety switch amplifier 0.05 mm (e. g. Pepperl+Fuchs KFD2-SH-Ex1)
Suitable for 2:1 technology	yes , with reverse polarity protection diode
Rate of current rise	2.1 mA / mm
Measuring plate not detected	≤ 1 mA
Measuring plate detected	≥ 3 mA
MTTFd	7974 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %
Control drawing	116-0165F
UL approval	cULus Listed, General Purpose
CSA approval	cULus Listed, General Purpose
CCC approval	CCC approval / marking not required for products rated ≤36 V
Ambient temperature	-25 … 100 °C (-13 … 212 °F)
Connection type	flexible leads LIY , 500 mm
Core cross-section	0.14 mm2
Core cross-section	PBT
Use in the hazardous area	see instruction manuals
Category	1G; 2G; 3G; 1D

مدل	SJ3,5-S1N
